Charge Complex-Y

Is a new ultra-fast charger from AE Charge Point.

old
price from

€67 500

New price
from €44 000

Station specification

ccs combo 1

CCS Type 2

1000V / 440kW / 360kW*

+
ccs combo 1

CHAdeMO

1000V / 80kW

+
ccs combo 1

Type 2 (Mennekes)

400V / 63A / 43kW**

+
type 2 socket

Type 2 socket

400V / 63А / 43kW**

+
e bike socket

E-Bike socket

230V / 16А / 3.5kW

* The specified power during the charging of one vehicle 440kW CCS Type 2. When charging two cars, the power is divided into 360kW for CCS Type 2 and 80kW for CHAdeMO. ** Can be supplied in two variants 400V / 63A / 43 kW or 400V / 32A / 22kW.

Mounting:

Floor mounting (on a concrete base)

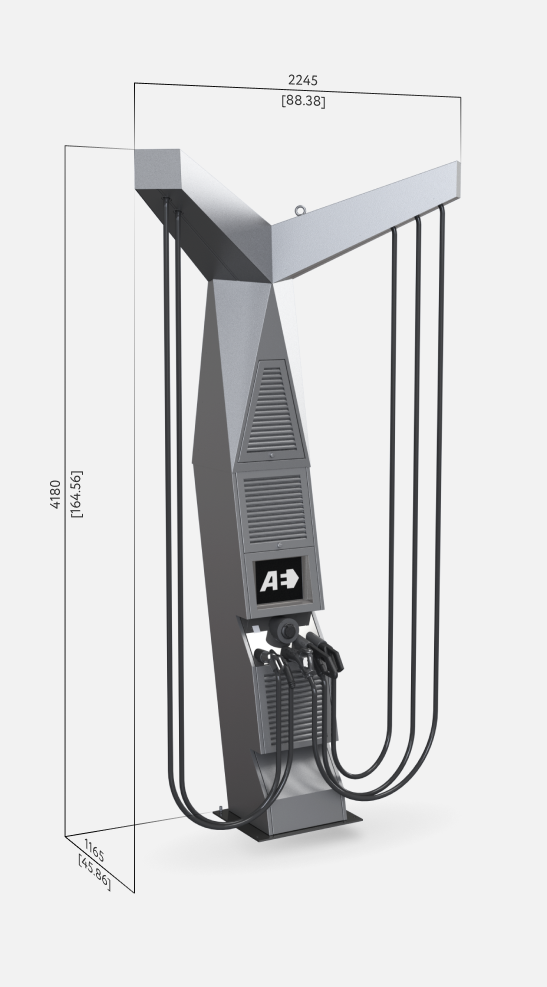

Charging station size (H×W×D):

164.56 x 88.38 x 45.86 inch / 4180 x 2245 x 1165 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

TFT display 17 " in English / Italian / German / France / Spanish / Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Stainless steel

AC Input - 400V / 725A

DC Output - 1000V / 1250А
AC Output - 400V / 125A

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+
cards Mobile application P&C by VIN code / credit card
terminal choose by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay

Protective equipment:

The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F.

Warranty

24 months

Charging station manufacturer:

Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC etc. certified

The number of cars that can be charged at the same time:

5 cars

The configuration of the station can be changed for the customer's needs.

Protective equipment:

The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F.

Warranty

24 months

Support for the following payment methods :

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay

station img

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Take more, pay less!

Table of discounts

It's simple. Choose a station you like and select the number of stations you want to buy. After that, in the table you will be able to see what discount you will get when you buy that many charging stations. And maybe you will want to buy more.

Number of charging stations

Charge Complex Y-280

Charge Complex Y-320

Charge Complex Y-360

Charge Complex Y-400

Charge Complex Y-440

1-5 pc.

44 000 €

No discount

45 500 €

No discount

47 000 €

No discount

48 500 €

No discount

50 000 €

No discount

6-10 pc.

41 800 €

-2 200 €

43 250 €

-2 250 €

44 700 €

-2 300 €

46 150 €

-2 350 €

47 600 €

-2 400 €

11-20 pc.

40 500 €

-3 500 €

41 900 €

-3 600 €

43 250 €

-3 750 €

44 650 €

-3 850 €

46 000 €

-4 000 €

21-50 pc.

39 600 €

-4 400 €

41 000 €

-4 500 €

42 300 €

-4 700 €

43 700 €

-4 800 €

45 000 €

-5 000 €

51-99 pc.

37 400 €

-6 600 €

38 700 €

-6 800 €

40 000 €

-7 000 €

41 300 €

-7 200 €

42 600 €

-7 400 €

100+ pc.

35 200 €

-8 800 €

36 400 €

-9 100 €

37 600 €

-9 400 €

38 800 €

-9 700 €

40 000 €

-10 000 €

200+ pc.

33 000 €

-11 000 €

34 150 €

-11 350 €

35 300 €

-11 700 €

36 450 €

-12 050 €

37 600 €

-12 400 €

Number of stations

1-5 pc.

6-10 pc.

11-20 pc.

21-50 pc.

51-99 pc.

100+ pc.

200+ pc.

Charge Complex Y 280

44 000 €

No discount

41 800 €

-2 200 €

40 500 €

-3 500 €

39 600 €

-4 400 €

37 400 €

-6 600 €

35 200 €

-8 800 €

33 000 €

-11 000 €

Charge Complex Y 320

45 500 €

No discount

43 250 €

-2 250 €

41 900 €

-3 600 €

41 000 €

-4 500 €

38 700 €

-6 800 €

36 400 €

-9 100 €

34 150 €

-11 350 €

Number of stations

1-5 pc.

6-10 pc.

11-20pc.

21-50pc.

51-99pc.

100+pc.

200+pc.

Charge Complex Y 360

47 000 €

No discount

44 700 €

-2 300 €

43 250 €

-3 750 €

42 300 €

-4 700 €

40 000 €

-7 000 €

37 600 €

-9 400 €

35 300 €

-11 700 €

Charge Complex Y 400

48 500 €

No discount

46 150 €

-2 350 €

44 650 €

-3 850 €

43 700 €

-4 800 €

41 300 €

-7 200 €

38 800 €

-9 700 €

36 450 €

-12 050 €

Number of stations

1-5 pc.

6-10 pc.

11-20pc.

21-50pc.

51-99pc.

100+pc.

200+pc.

Charge Complex Y 440

50 000 €

No discount

47 600 €

-2 400 €

46 000 €

-4 000 €

45 000 €

-5 000 €

42 600 €

-7 400 €

40 000 €

-10 000 €

37 600 €

-12 400 €

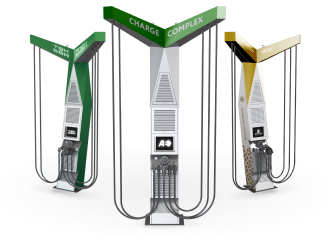

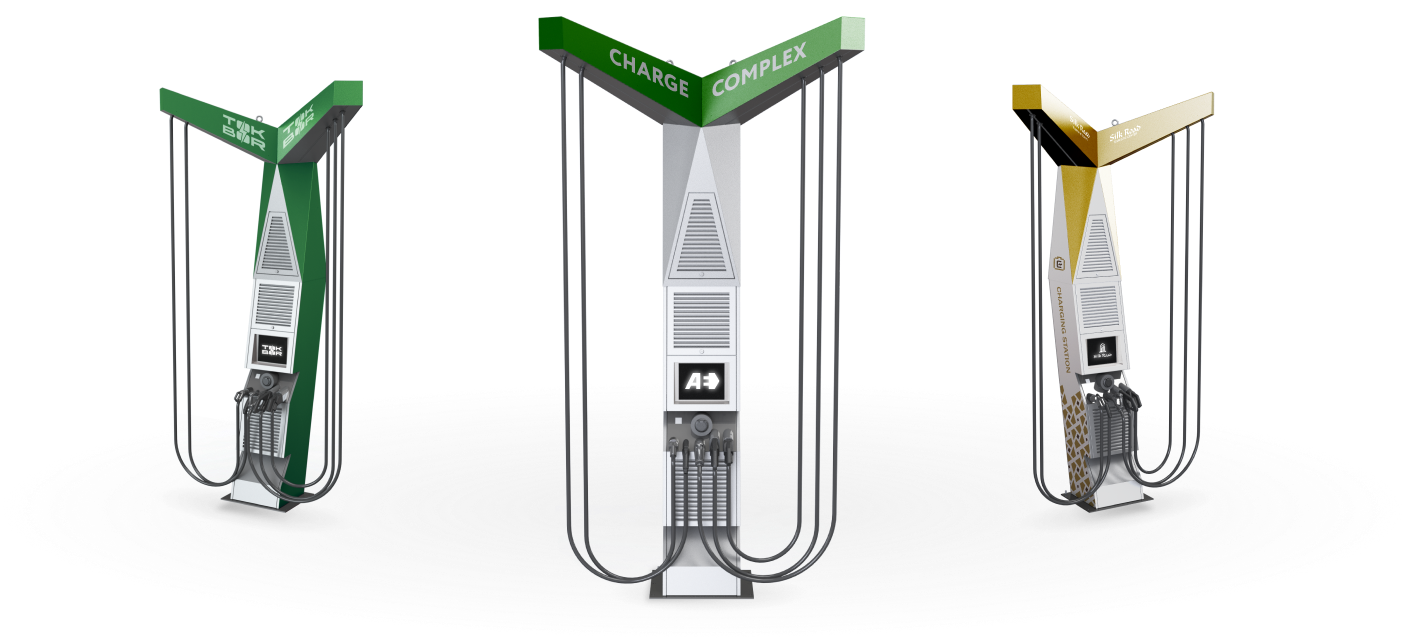

Branding your charging station

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

branding
branding

Our partner Charger System Inc

For clients
modern design

Advanced approach to UX and UI

regular update

Regular updates, new features, etc.

For business
control

Manage your EV charging network

edit info

Edit station information and functions in your app

Visit web-site >

CS Cloud

Charger System Inc provides customers with a cloud-connected product that allows charging stations to operate on the same network.

app

Mobile Apps for clients

online support

Online support and diagnostic

configuration

Online config and updates

manager

Transaction manager

bill

Billing system

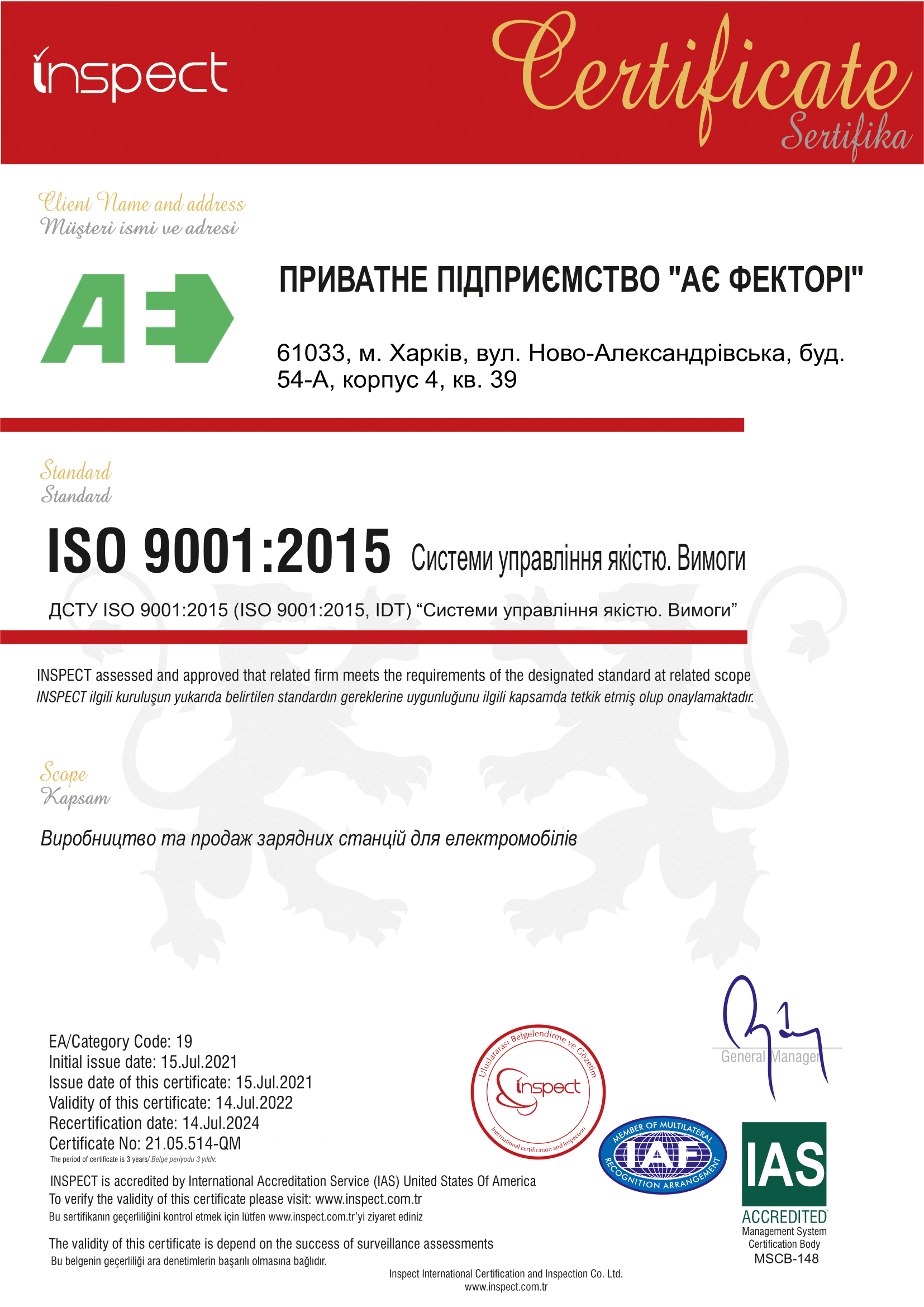

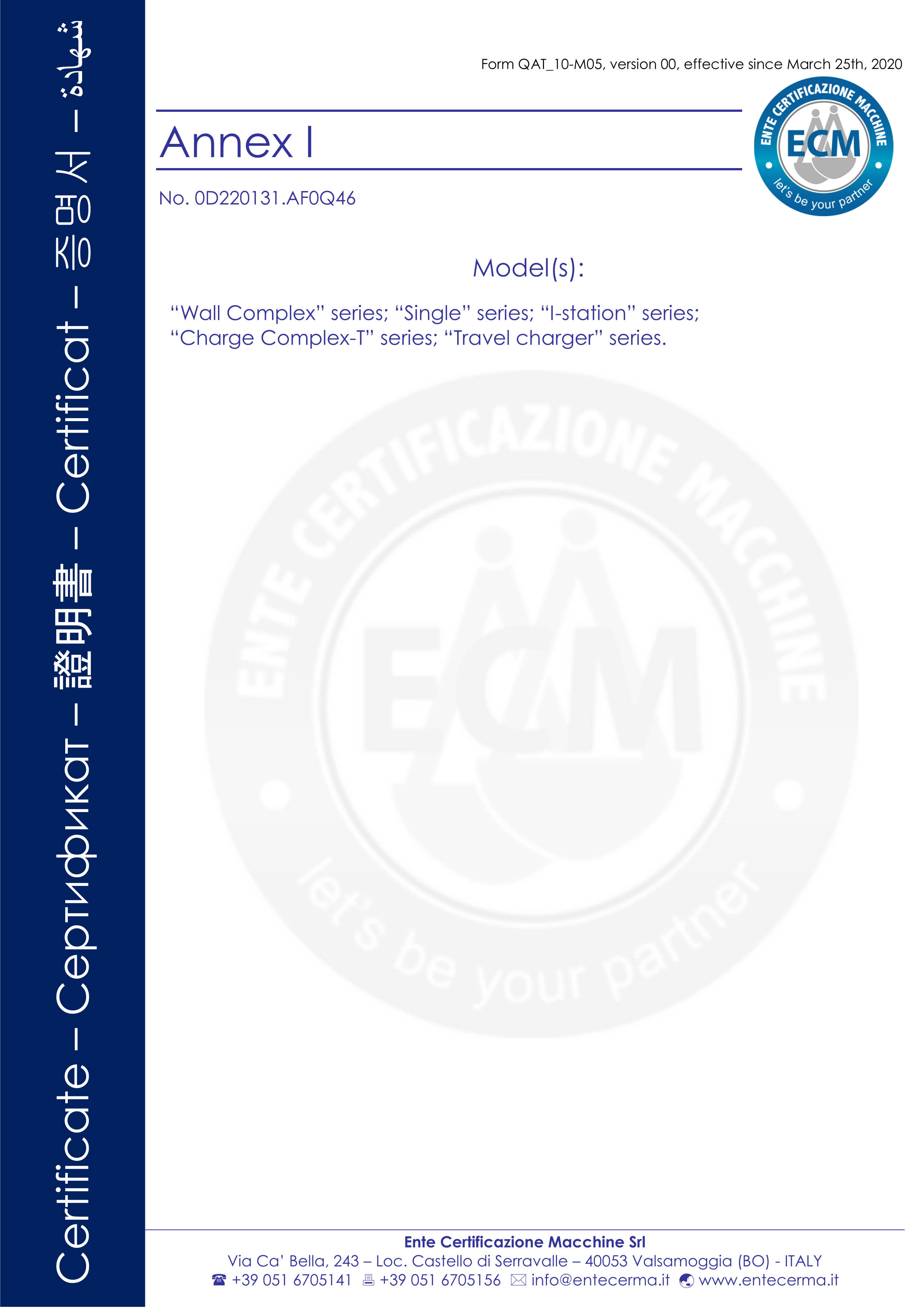

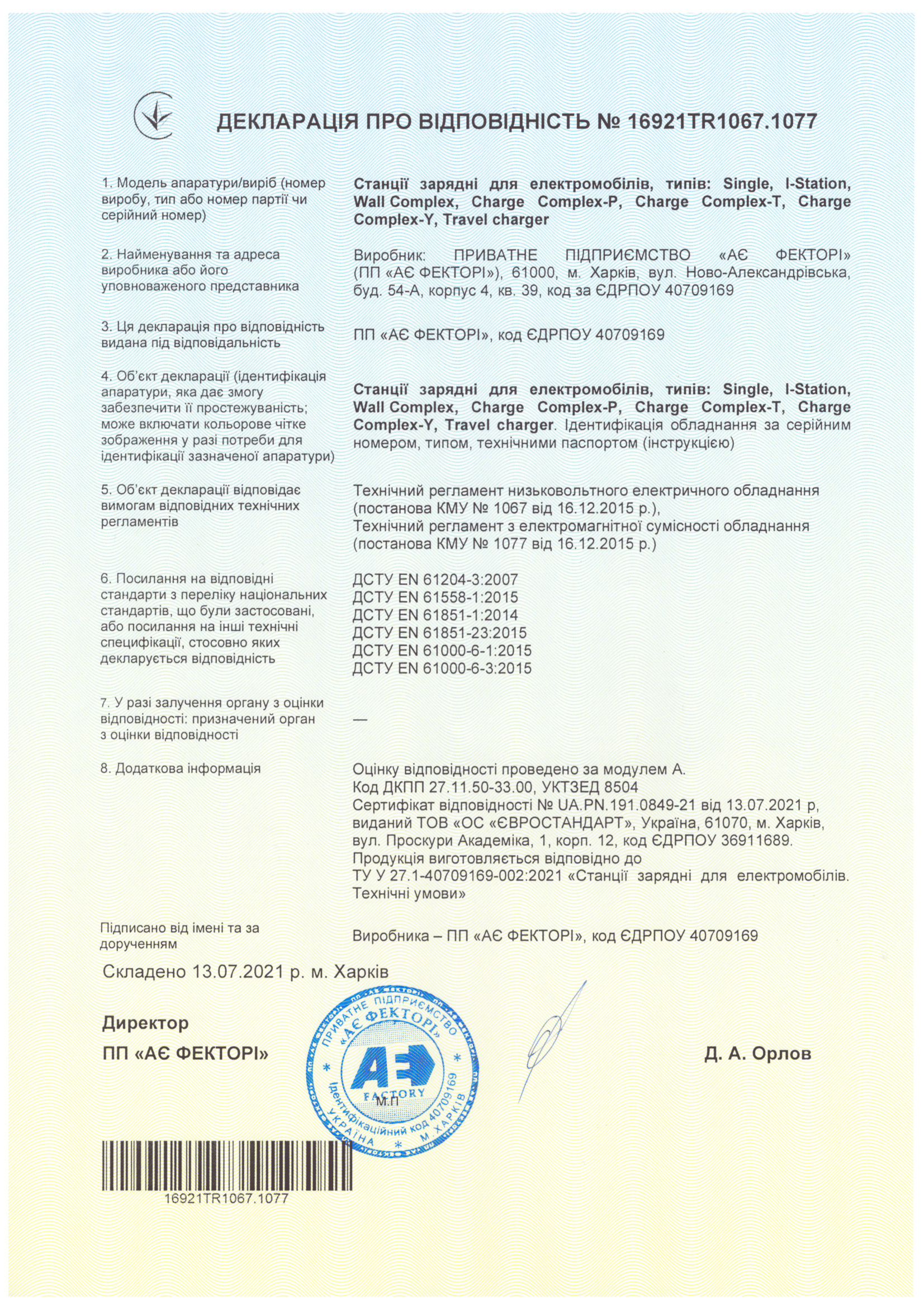

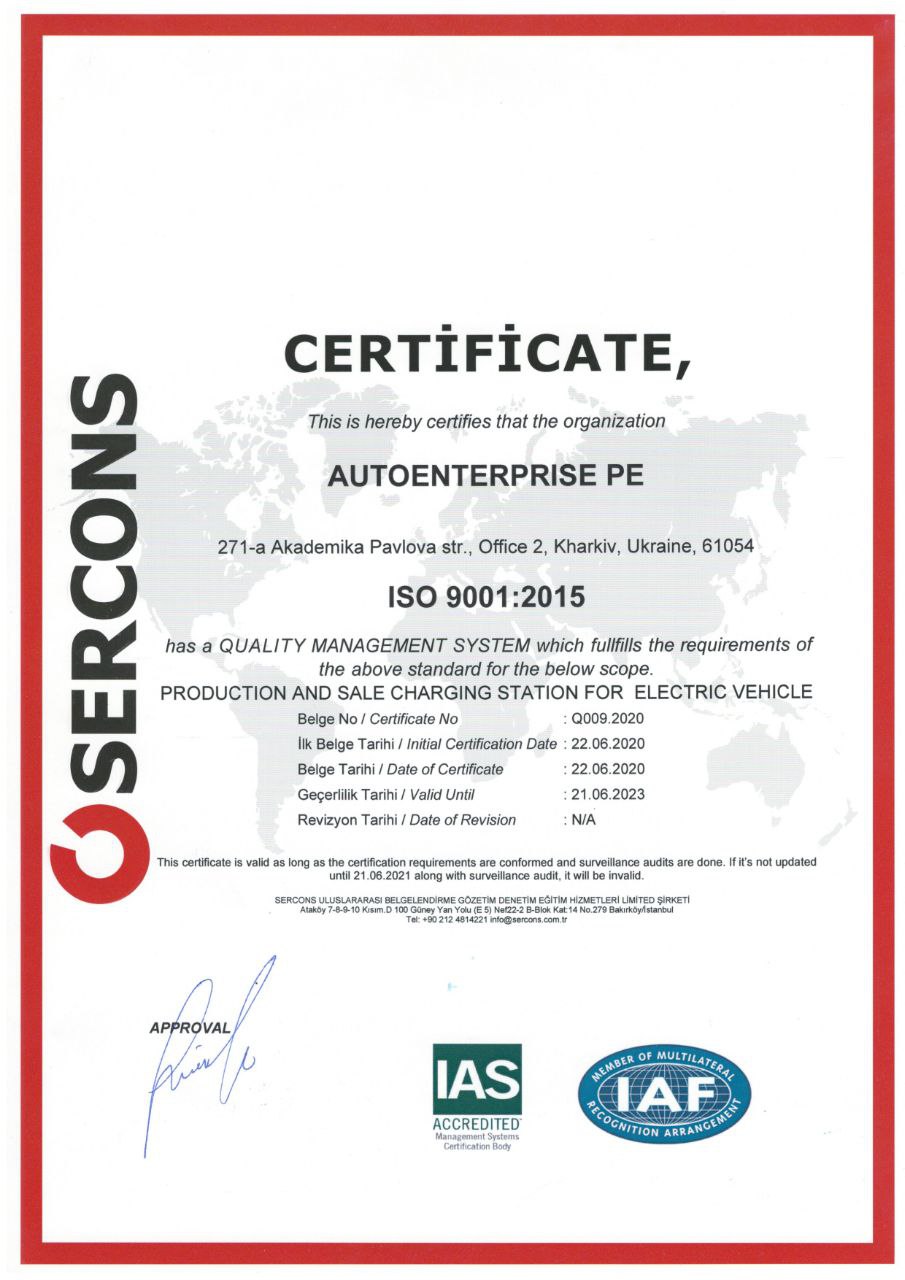

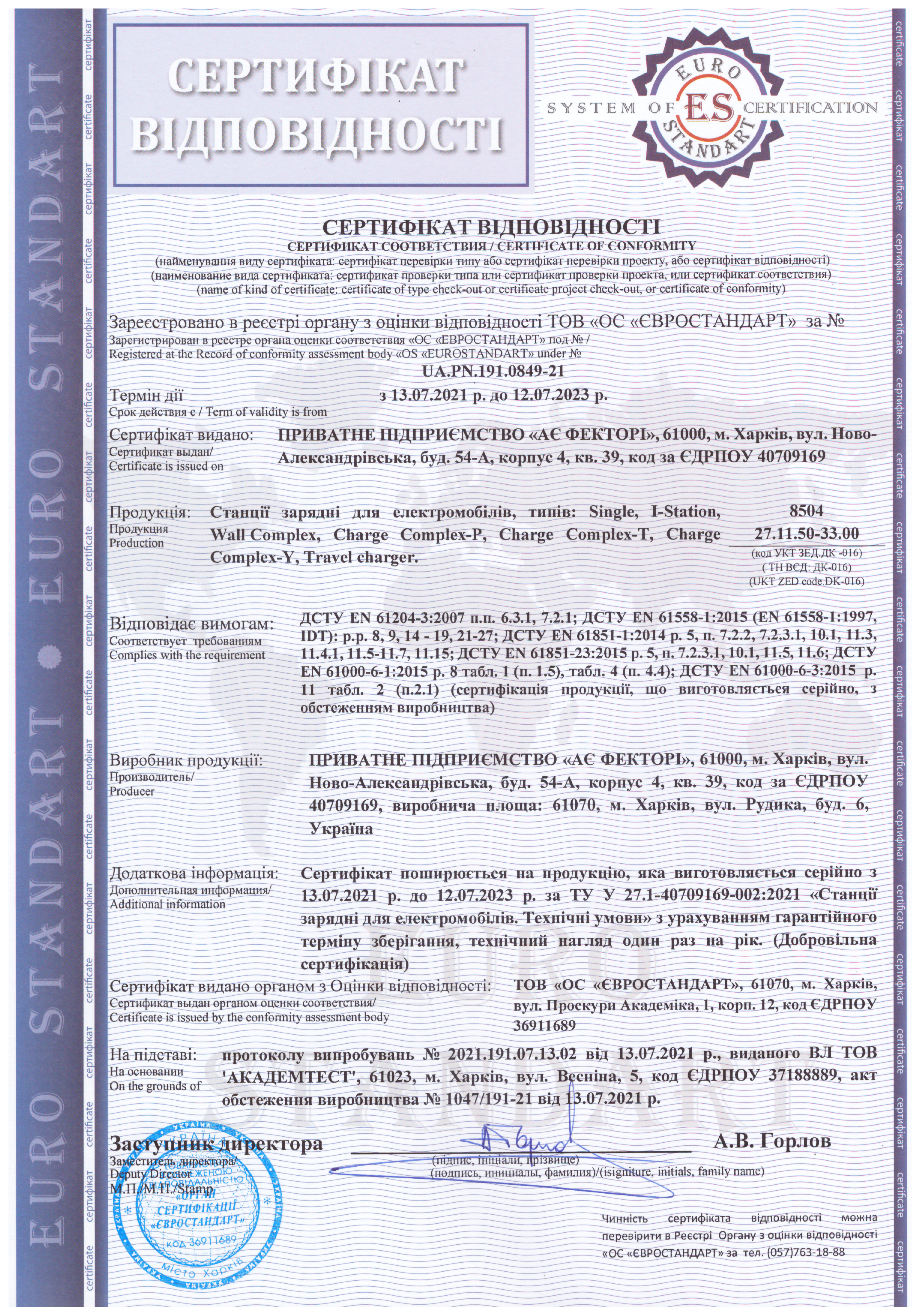

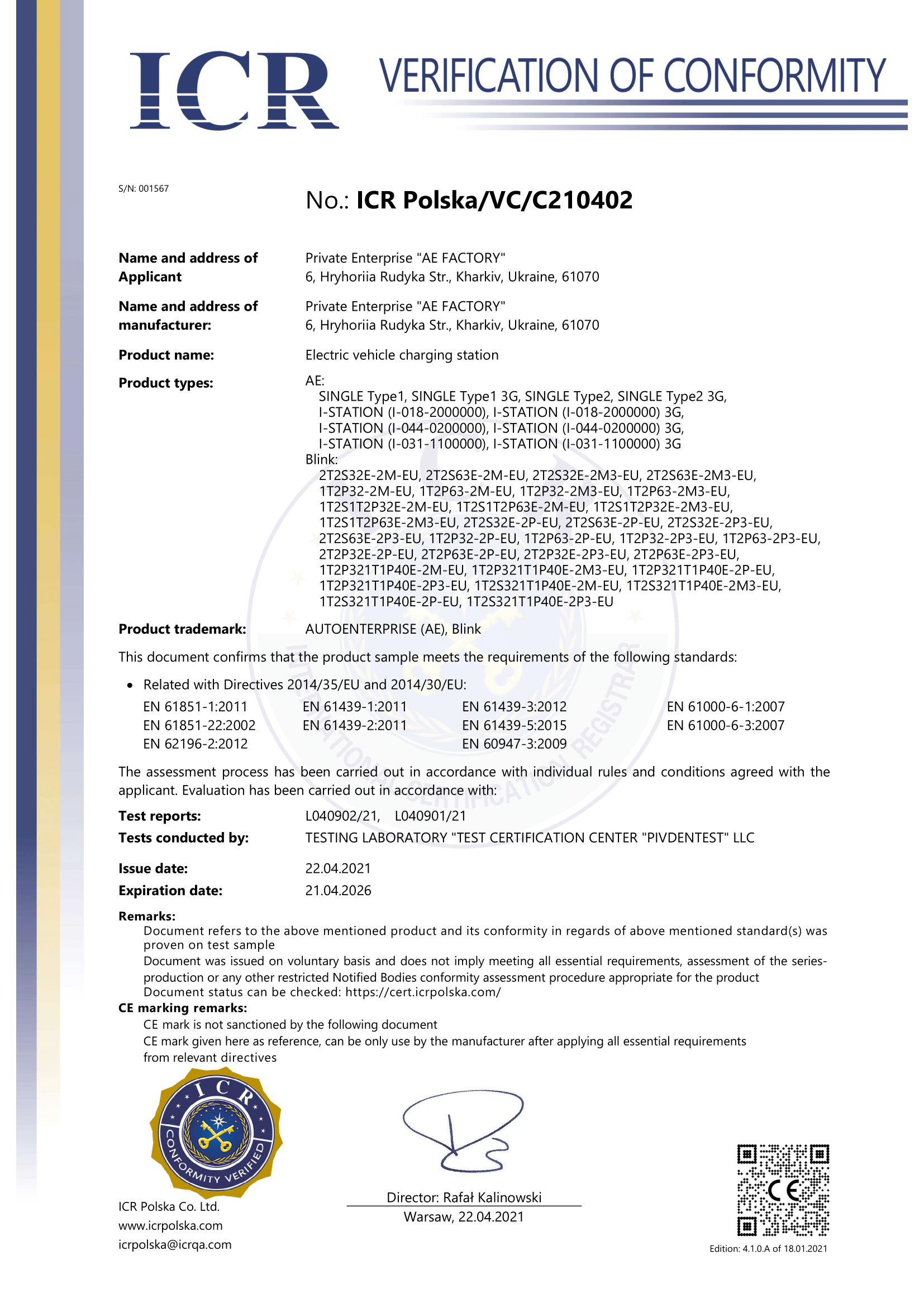

Our certificates

The highest quality of AE Charge Point stations is confirmed by certificates of conformity of independent organizations around the world.

Our products are successfully sold to Europe, Israel (USA and Canada for fleet charging).
