Dual Charger
Balance energy between plugs

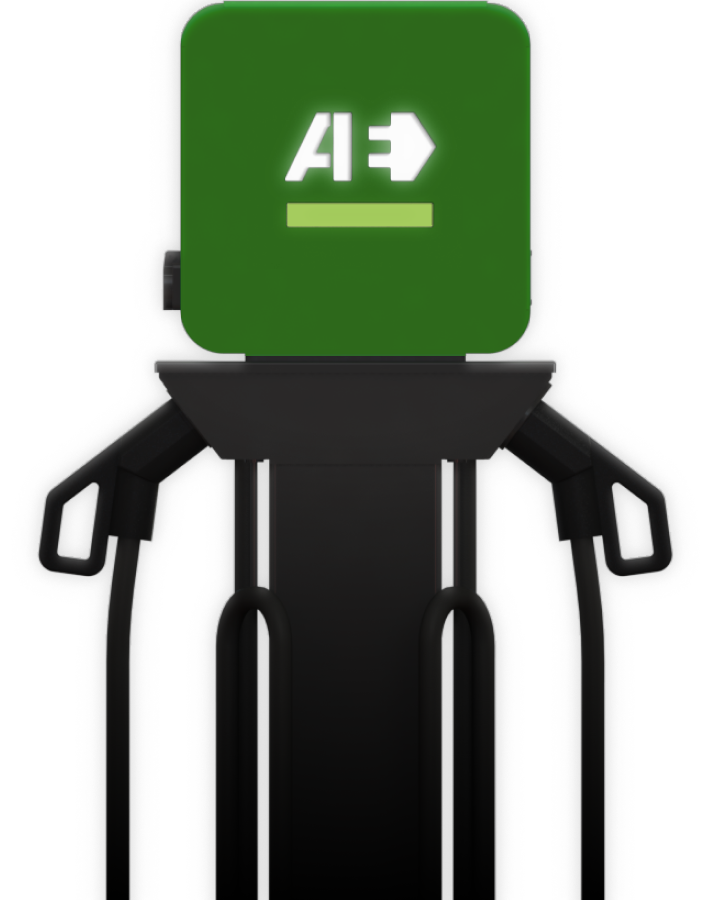

Dual Station is a new generation up to 88kW
charging stations from AE Charge Point.

From € 1,300

dual-station

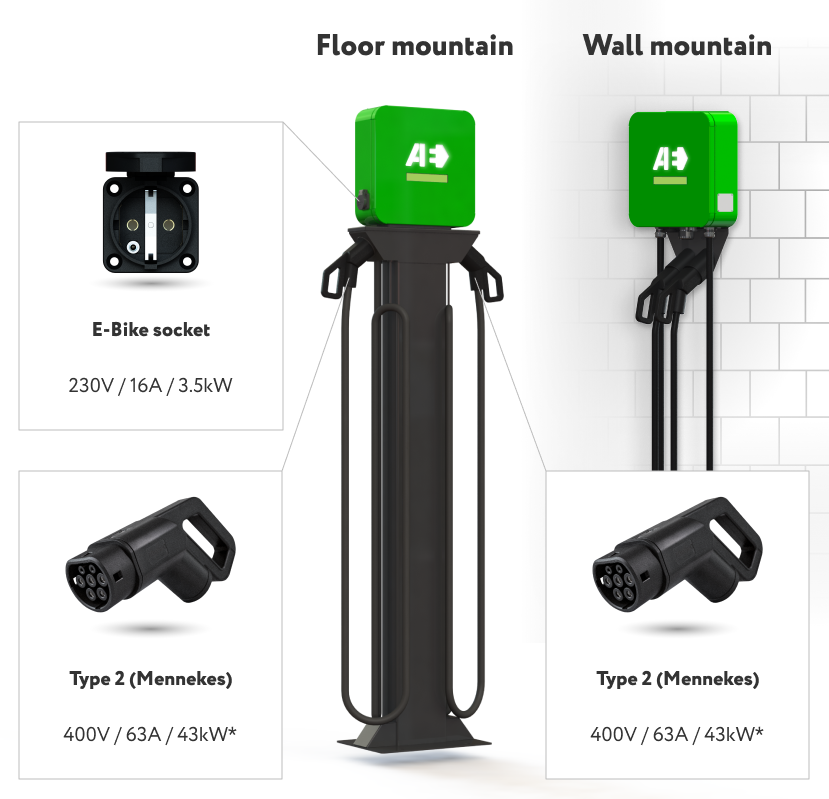

Station specification

decrs img decrs img
e-bike

E-Bike socket

230V / 16А / 3.5kW

type-2

Type 2 (Mennekes)

400V / 63А / 43kW**

type-2

Type 2 (Mennekes)

400V / 63А / 43kW**

Floor mountain

Wall mountain

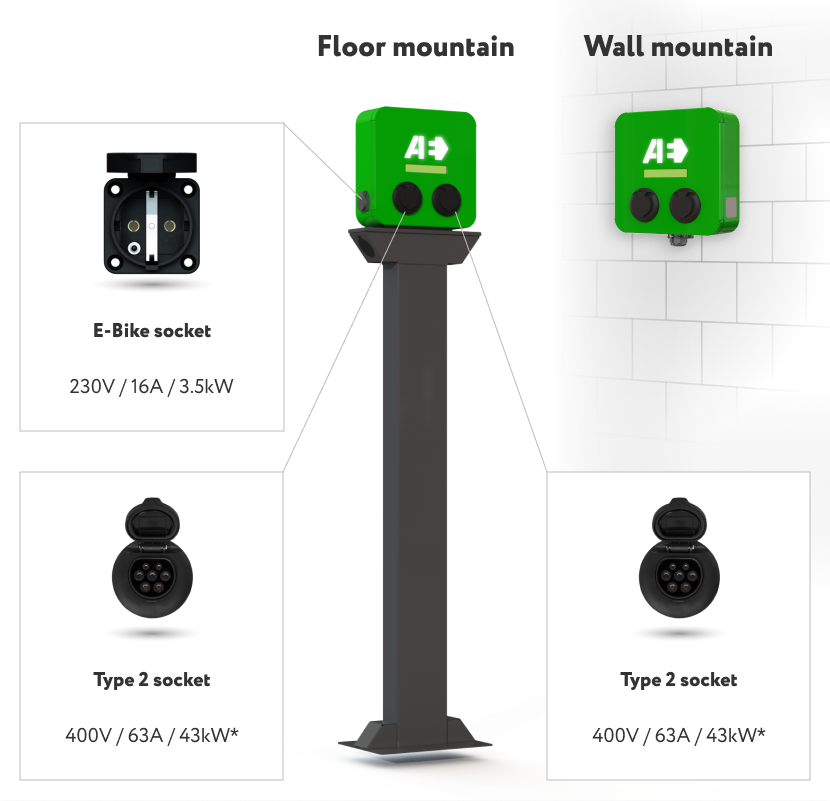

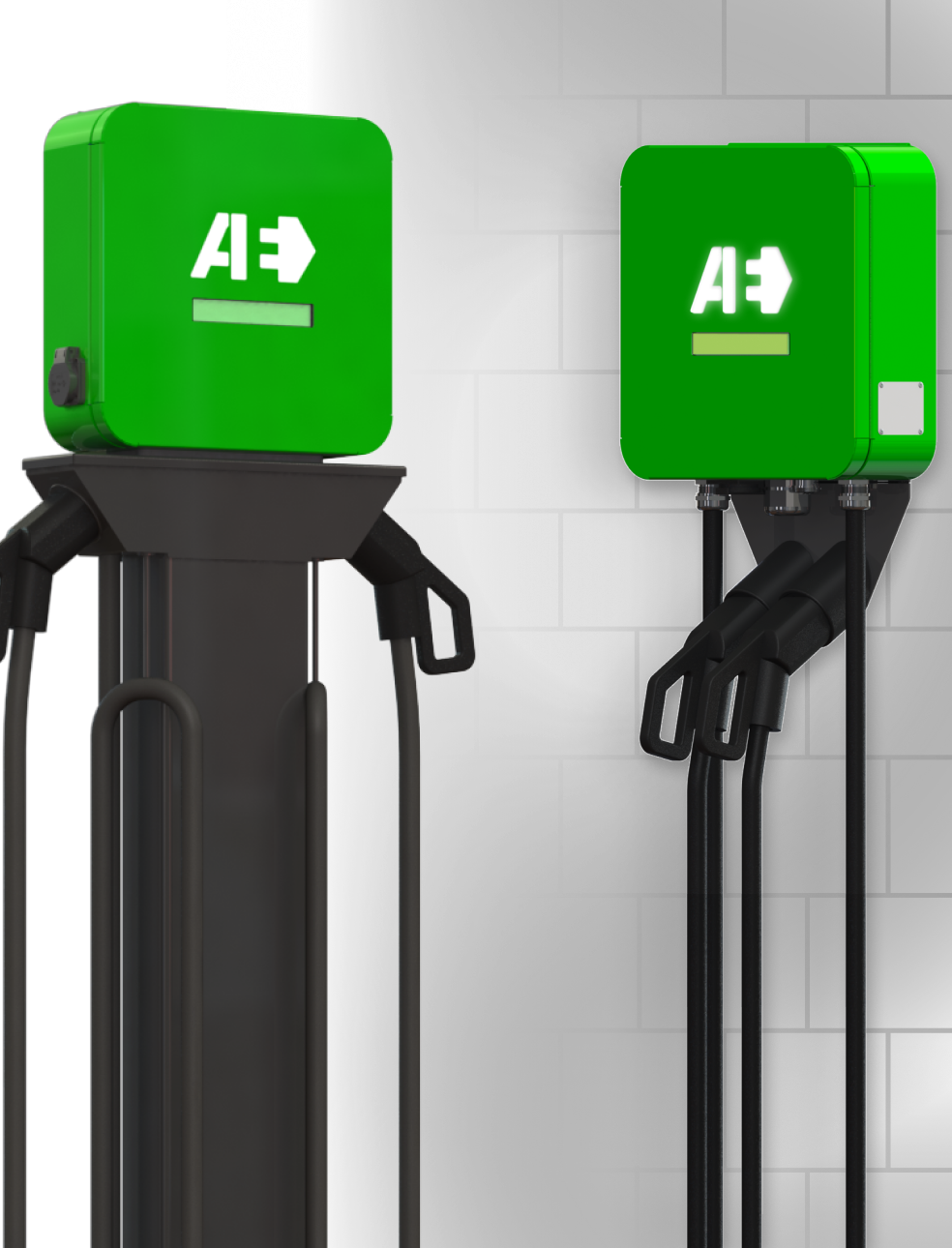

spec-1
e-bike

E-Bike socket

230V / 16А / 3.5kW

type-2 socket

Type 2 socket

400V / 63А / 43kW**

type-2 socket

Type 2 socket

400V / 63А / 43kW**

Floor mountain

Wall mountain

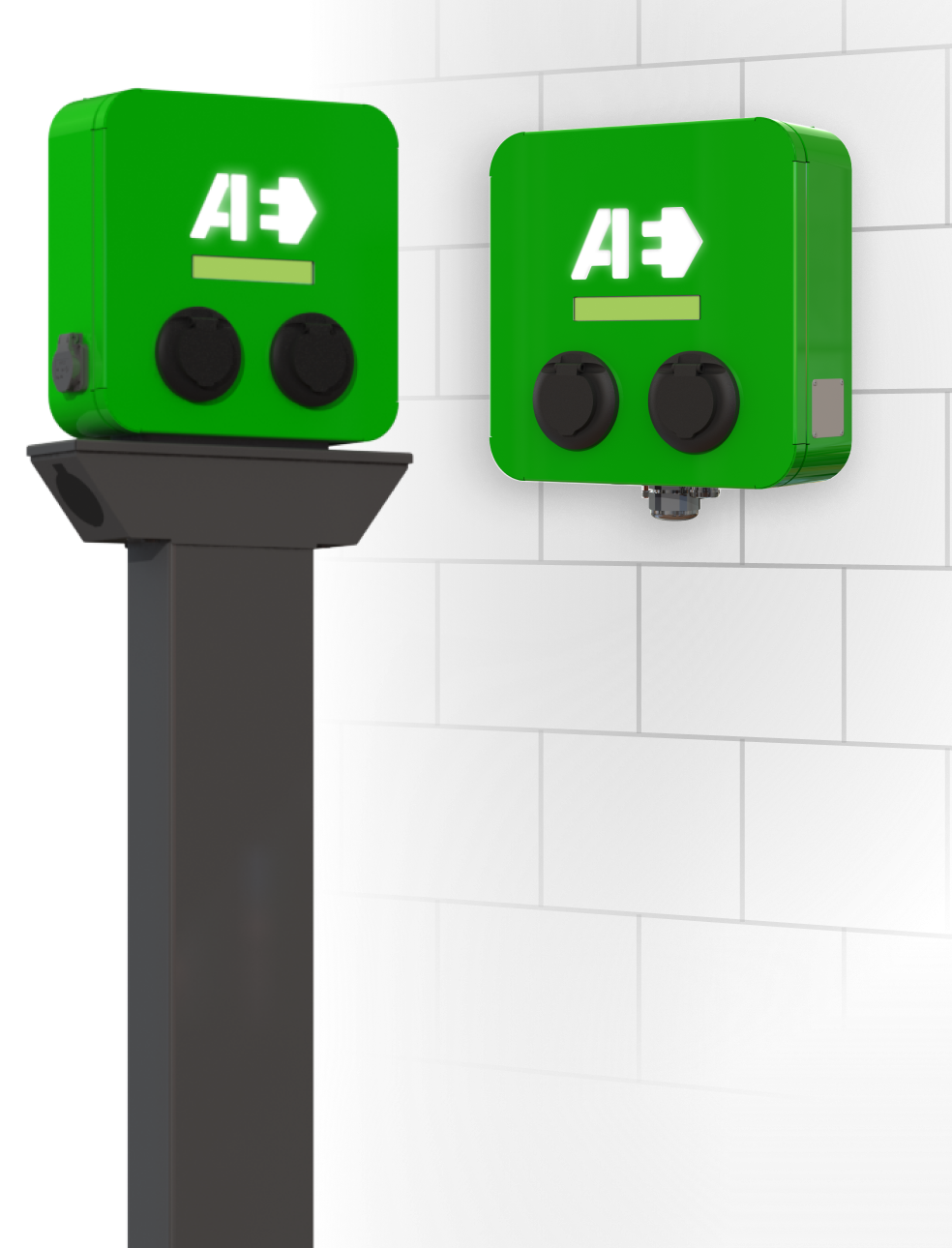

spec-2

* Can be supplied in two versions 400V / 63A / 43 kW and 400V / 32A / 22 kW

Mounting:

Wall-mounted
Pedestal (on a concrete base)

Charging station size (H×W×D):

Wall mounting:
20.55 x 14.37 х 9.17 inch / 522 x 365 x 233 mm
Floor mounting:
78.07 x 25.98 x 11.42 inch / 1983 х ~660 х 290 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

Two-line LED-backlit in English / Italian / German / France / Spanish / Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Steel anti-corrosion coating

Input/output 230/400V:

Minimum - 12A
Maximum - 125A

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+
cards Mobile application P&C by VIN code / credit card
terminal choosed by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay, and any other choosed by owner

Protective equipment:

The charging station is equipped with a controller with an
electronic RCD (30mA, 3 phases) and ground control
Enclosure protection class IP65
Mechanical protection class IK10

Operating temperature range:

From -35°C to +50 °C / -31°F to +122°F

Warranty:

24 months

Charging station manufacturer:

Ukraine

CE, ISO, EAC and etc. certified

The number of cars that can be charged at the same time:

2 cars (Type2 Mennekes / Type 2 sockets) + 1 Socket ( 230V 16A) Tested with all EV cars and Plug-in Hybrid models

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

Take more, pay less!

Table of discounts

It's simple. Choose a station you like and select the number of stations you want to buy. After that, in the table, you will be able to see what discount you will get when you buy that many charging stations. And maybe you will want to buy more.

Number of charging stations

1-5 pc.

6-10 pc.

11-20 pc.

21-50 pc.

51-99 pc.

100+ pc.

200+ pc.

AC Charger Dual Charger

1 300 €

No discount

1 300 €

No discount

1 250 €

-50 €

1 200 €

-100 €

1 150 €

-150 €

1 100 €

-200 €

1 050 €

-250 €

Number of stations

1-10 pc.

11-20 pc.

21-50 pc.

51-99 pc.

100+ pc.

200+ pc.

AC Charger Dual Charger

1 300 €

No discount

1 250 €

-50 €

1 200 €

-100 €

1 150 €

-150 €

1 100 €

-200 €

1 050 €

-250 €

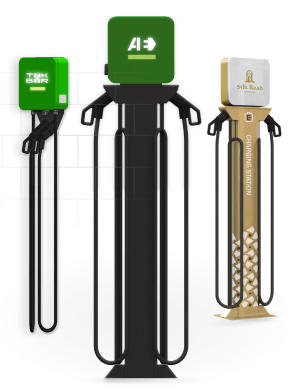

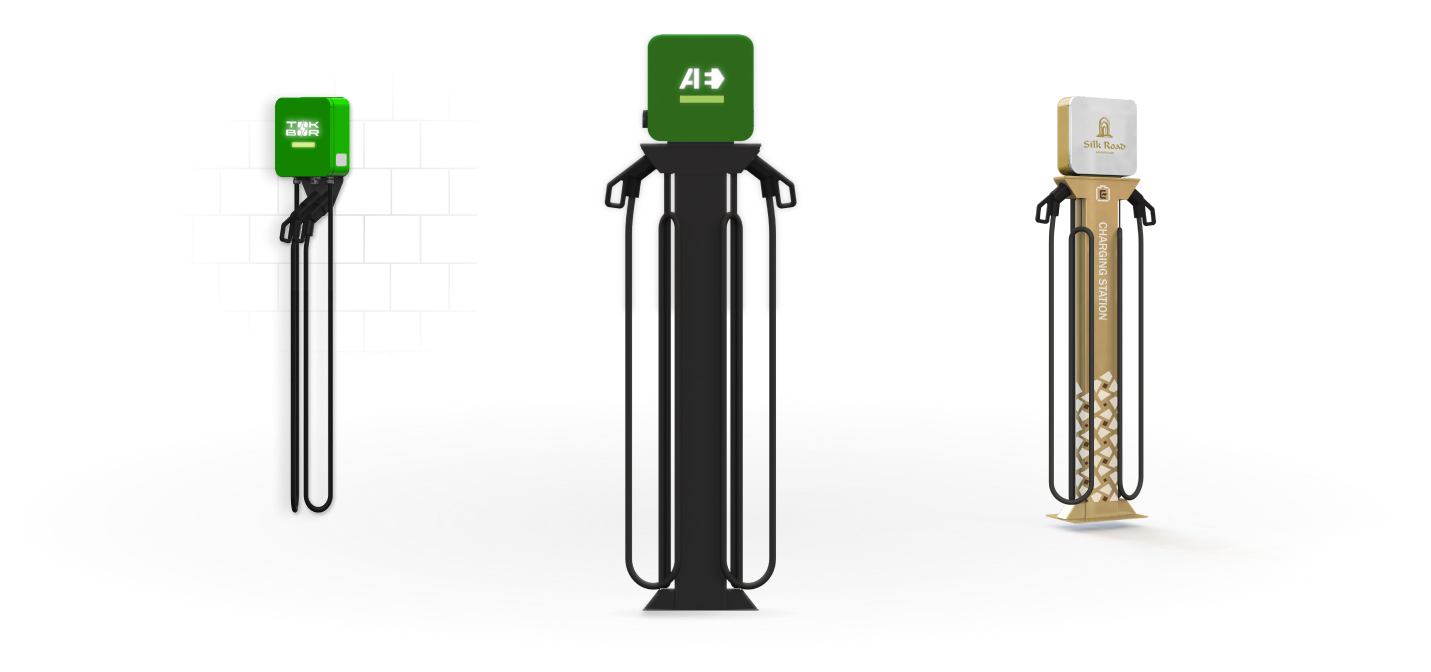

Branding your charging station
