Type 2 (Mennekes)
400V / 63А / 43kW*
* Available in two versions 400V / 63A / 43 kW and 400V / 32A / 22 kW
Mounting:
Wall Configuration
Pedestal (on concrete base)
Charging station size:
Wall mounting:
18.58 x 11.06 х 6.37 inch / 472 х 281 х 162 mm
Floor mounting:
68.62 x 11.06 х 6.37 inch / 1743 х 281 х 162 mm
Length of cables:
From 21.33 ft / 6.5 m
Information display:
Two-line LED-backlit in English / Italian / German / France /
Spanish /
Ukrainian / Polish / Czech / Macedonian / russian
Enclosure:
Steel anti-corrosion coating
Input/output 230/400V:
Minimum - 6A
Maximum - 63A
Methods of connecting the charging station to the billing system are available:
2G, 3G, 4G, LAN, Wi-Fi
OCPP protocol support:
1,6 SOAP & JSON
Access and activation:
RFID cards (Mifare standard), local list memory - 10000+
cards Mobile application P&C by VIN code / credit card
terminal choosed by owner
Payment by credit card:
Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)
Support for the following payment methods:
Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay, and any other choosed by owner
Protective equipment:
The charging station is equipped with a controller with an
electronic RCD (30mA, 3 phases) and ground control
Enclosure protection class IP65
Mechanical protection class IK10
Operating temperature range:
From -35°C to +50°C / -31°F and 122°F
Warranty:
24 months
Charging station manufacturer:
Ukraine
CE, ISO, EAC etc. certified
The number of cars that can be charged at the same time:
1 car
Check out the detailed technical characteristics and rules of operation of the charging station.
Download instruction >
The Portable Single allows you to charge anywhere, from a regular
outlet, with as much power as the grid allows.
You have the ability to manually adjust the power from 1kW to 19kW and
charge any electric vehicle. Compact waterproof device can be taken
with you and use it whenever and wherever you want.
from € 399

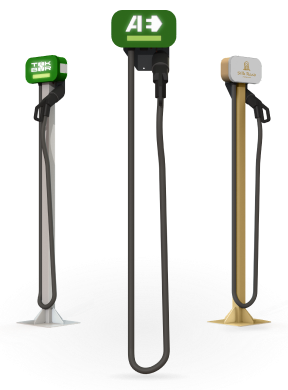

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.
Advanced approach to UX and UI
Regular updates, new features, etc.
Manage your EV charging network
Edit station information and functions in your app
Charger System Inc provides customers with a cloud-connected product that allows charging stations to operate on the same network.
Mobile Apps for clients
Online support and diagnostic
Online config and updates
Transaction manager
Billing system
The highest quality of AE Charge Point stations is confirmed by
certificates of conformity of independent organizations around the
world.
Our products are successfully sold to Europe, Israel (USA and Canada
for fleet charging).
