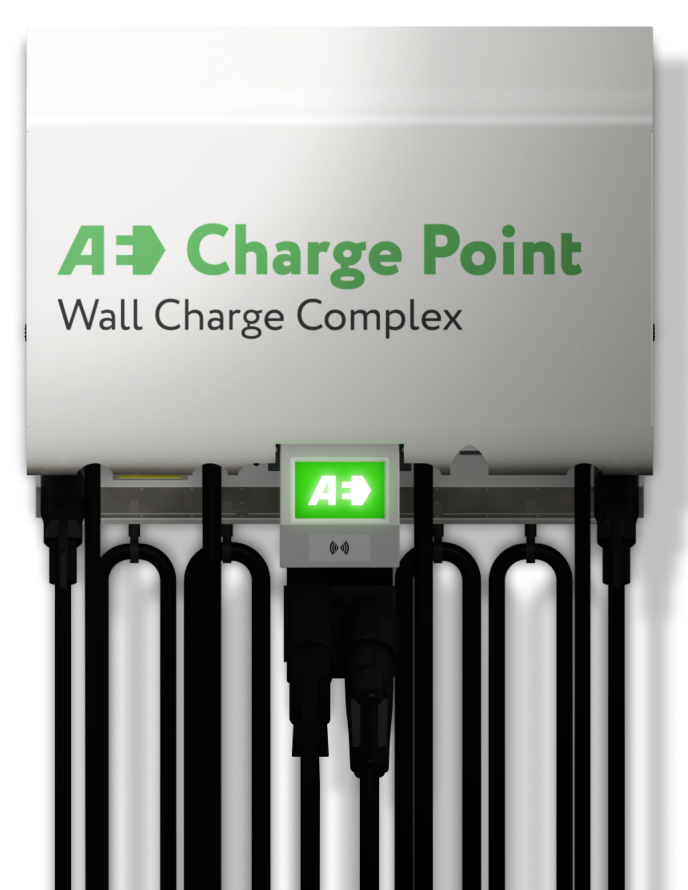

Wall Charge Complex.

Is a new fast charger from AE Charge Point.

From € 8 500

Order station > Specifications >

Station specification

Type 2 (Mennekes)

400V / 63A / 43kW**

CCS Type 2

550V / 120kW / 60kW*

CHAdeMO

550V / 60kW

Type 2 (Mennekes)

400V / 63A / 43kW**

* The specified power during the charging of one vehicle 120kW CCS Type 2.
When charging two cars, the power is divided into 60kW for CCS Type 2 and 60kW for CHAdeMO.

** Available in two versions 400V / 63A / 43 kW or 400V / 32A / 22 kW. There are two connectors on the charging station.

Mounting:

Wall-mounted (wall)
Pedestal (on a concrete base)

Charging station size (H×W×D):

Wall mounting:
41.93 x 41.85 x 15.31 inch / 1065 × 1063 × 389 mm
Floor mounting:
83.70 x 41.85 x 15.31 inch / 2126 × 1063 × 389 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

LCD screen 7” in English / Italian / German / France / Spanish / Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Metal galvanized and painted

AC Input - 400V / 350A (For powerful version)

DC Output - 1000V / 450А
AC Output - 400V / 125A

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+ cards Mobile application P&C by VIN code / credit card terminal choose by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express, Apple Pay, Google Pay

Protective equipment:

The charging station is equipped with a controller with an
electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F

Warranty:

24 months

Charging station manufacturer:

Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC etc. certified

The number of cars that can be charged at the same time:

4 cars

The configuration of the station can be changed for the customer's needs.

Warranty:

24 months

Charging station manufacturer:

Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC and etc. certified

The number of cars that can be charged at the same time:

4 cars

The configuration of the station can be changed for the customer's needs.

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

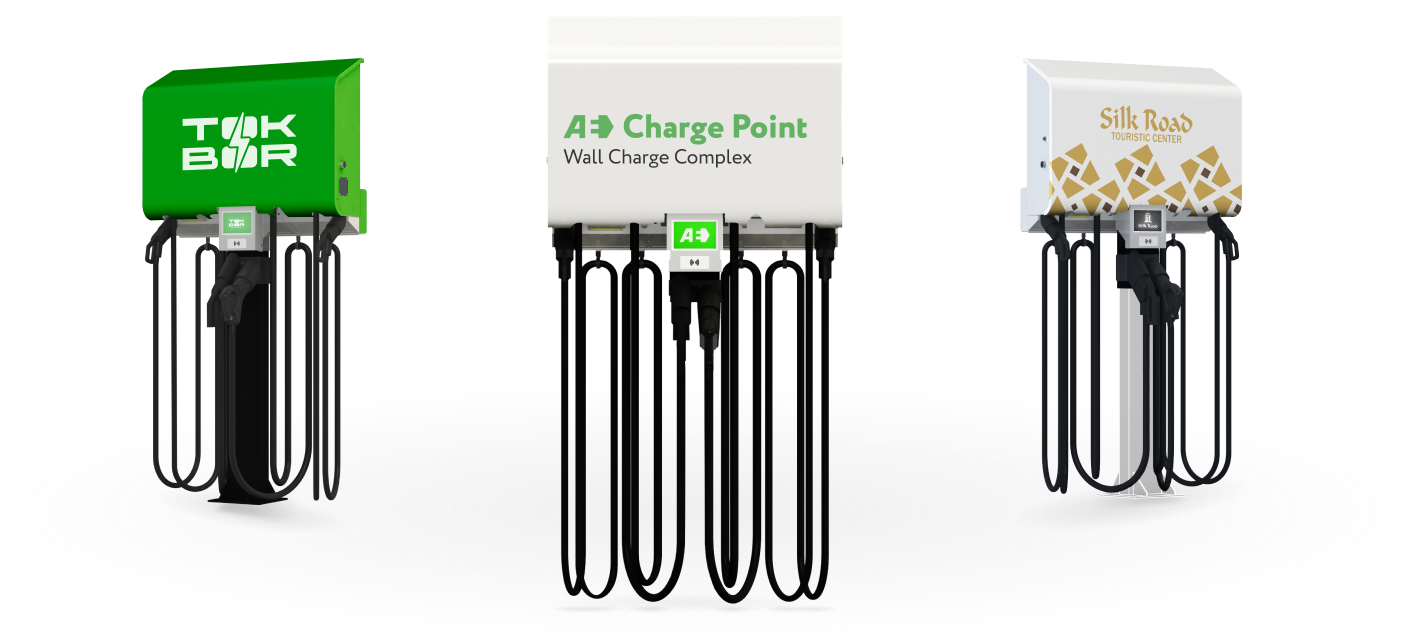

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

Wall Complex 160kW

Will be soon...

Future specification

* The specified power during the charging of one vehicle 160kW CCS Type 2. When charging two cars, the power is divided into 80kW for CCS Type 2 and 80kW for CHAdeMO.

** Available in two versions 400V / 63A / 43 kW or 400V / 32A / 22 kW. There are two connectors on the charging station.

CCS Type 2

1000V / 160kW / 80kW*

CHAdeMO

1000V / 80kW

Type 2 (Mennekes)

400V / 63А / 43kW**

Type 2 (Mennekes)

400V / 63А / 43kW**
