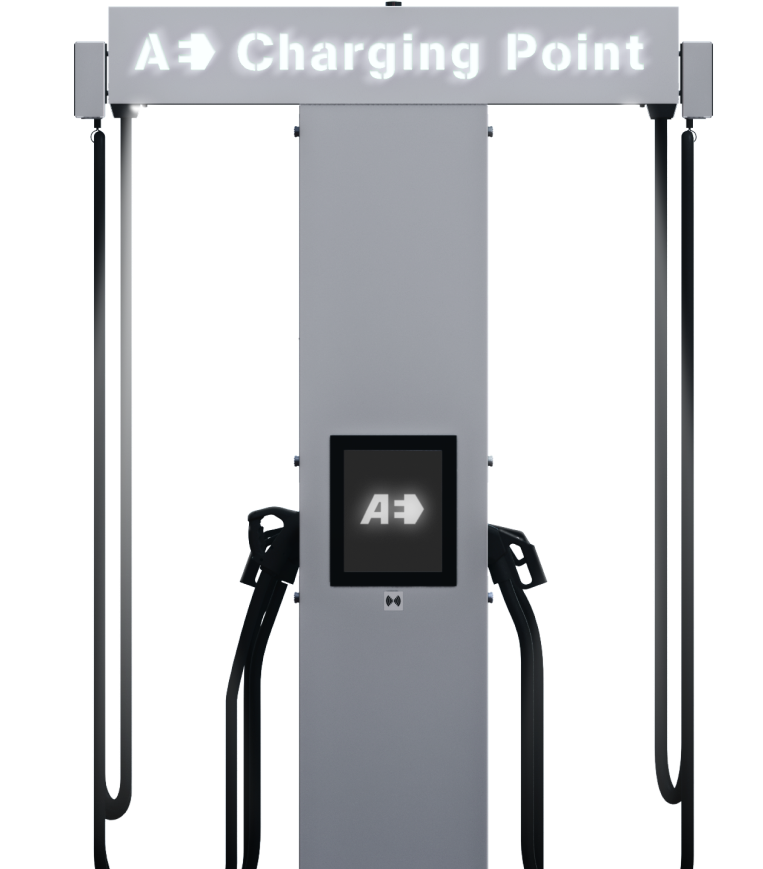

Charge Complex-T

Is a new super-fast charger from AE Charge Point.

old
price from

€24 000

New price
from
€21 000

Station specification

ccs combo 1

CCS Type 2

550V / 240kW / 180kW*

+
ccs combo 1

CHAdeMO

550V / 60kW

+
ccs combo 1

Type 2 (Mennekes)

400V / 63A / 43kW**

+
type 2 socket

Type 2 socket

400V / 63А / 43kW**

+
e bike socket

E-Bike socket

230V / 16А / 3.5kW

* The specified power during the charging of one vehicle 240kW CCS Type 2. When charging two cars, the power is divided into 180kW for CCS Type 2 and 60kW for CHAdeMO. ** Can be supplied in two variants 400V / 63A / 43 kW or 400V / 32A / 22kW.

Mounting:

Floor mounting (on a concrete base)

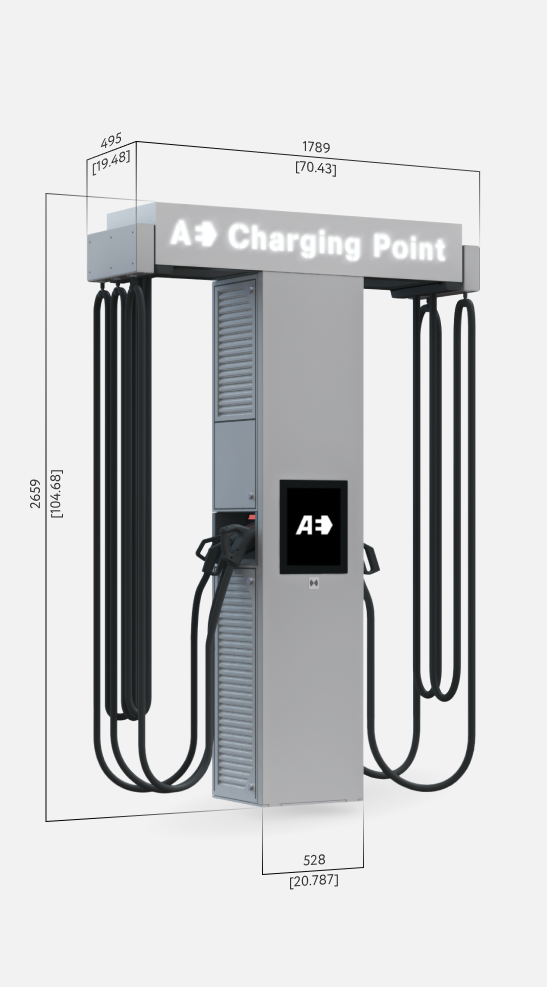

Charging station size (H×W×D):

104.68 x 70.43 x 19.48 inch / 2659 x 1789 x 495 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

LCD display 17" in English / Italian / German / France / Spanish /
Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Powder coated metal

AC Input - 400V / 575A (For powerful version)

DC Output - 1000V / 960А
AC Output - 400V / 125A

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+
cards Mobile application P&C by VIN code / credit card
terminal choose by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods :

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay

Protective equipment:

The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F.

Warranty

24 months

Charging station manufacturer:

Ukraine

Manufacturing components:

European Union, USA, Ukraine, Korea

CE, ISO, EAC etc. certified

The number of cars that can be charged at the same time:

5 cars

The configuration of the station can be changed for the customer's needs.

Protective equipment:

The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From ‐35°C to +50°C / -31°F to +122°F.

Warranty

24 months

Support for the following payment methods :

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay

station img

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

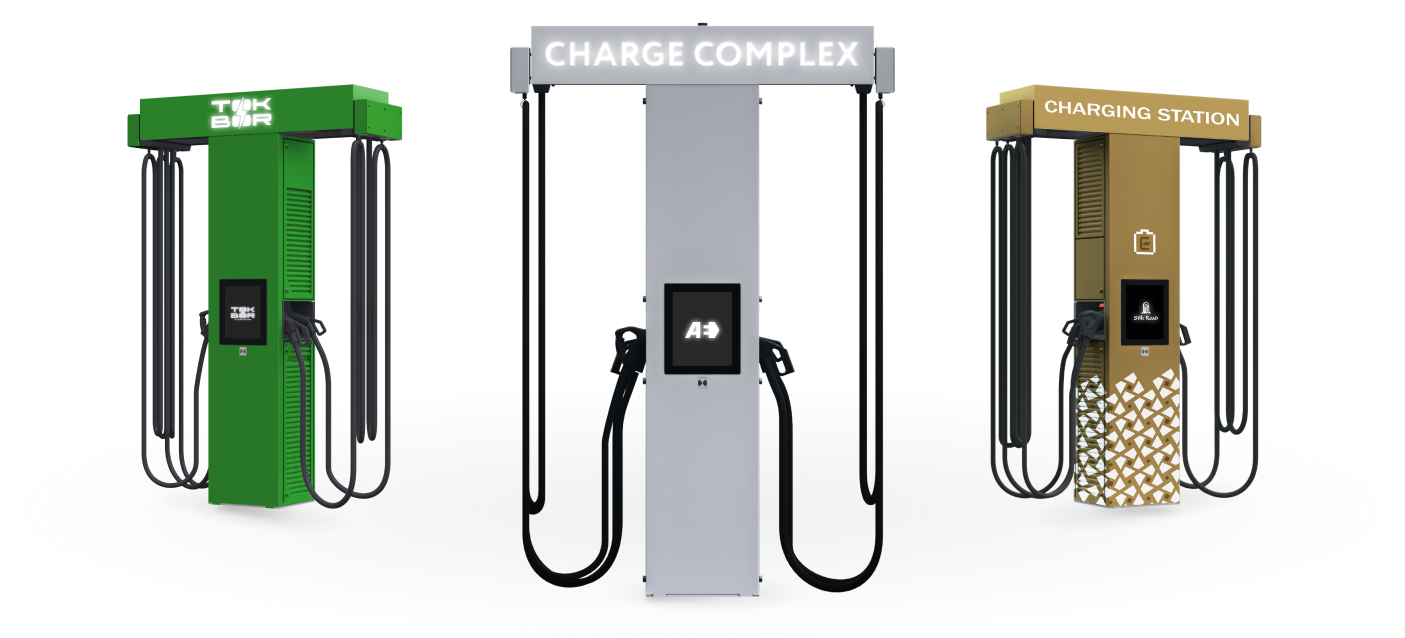

Branding your charging station

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

branding
branding

Charge Complex T-320

Will be soon...

Future specification

* The specified power during the charging of one vehicle 320kW CCS Type 2. When charging two cars, the power is divided into 240kW for CCS Type 2 and 80kW for CHAdeMO. ** Can be supplied in two variants 400V / 63A / 43 kW or 400V / 32A / 22kW.

ccs type 2

CCS Type 2

1000V / 320kW / 240kW*

+
chademo

CHAdeMO

1000V / 80kW

+
type 2 mennekes

Type 2 (Mennekes)

400V / 63А / 43kW

+
type 1 j1772

Type 2 socket

400V / 63А / 43kW**

+
e-bike

E-bike socket

230V / 16А / 3.5kW

* The specified power during the charging of one vehicle 320kW CCS Type 2. When charging two cars, the power is divided into 240kW for CCS Type 2 and 80kW for CHAdeMO. ** Can be supplied in two variants 400V / 63A / 43 kW or 400V / 32A / 22kW.
