DC Travel Charger
It's all in your hands

DC Travel Charger is the new compact solution from AE Charge Point. Now you can not only choose your own charging spot, but also the capacity of your charging station. Flexibility, productivity, mobility and no limits.

From € 6 500

Station specification

ccs combo 2

CCS Type 2

1000V / 40kW

or
type-2 menneke big

CHAdeMO

1000V / 40kW

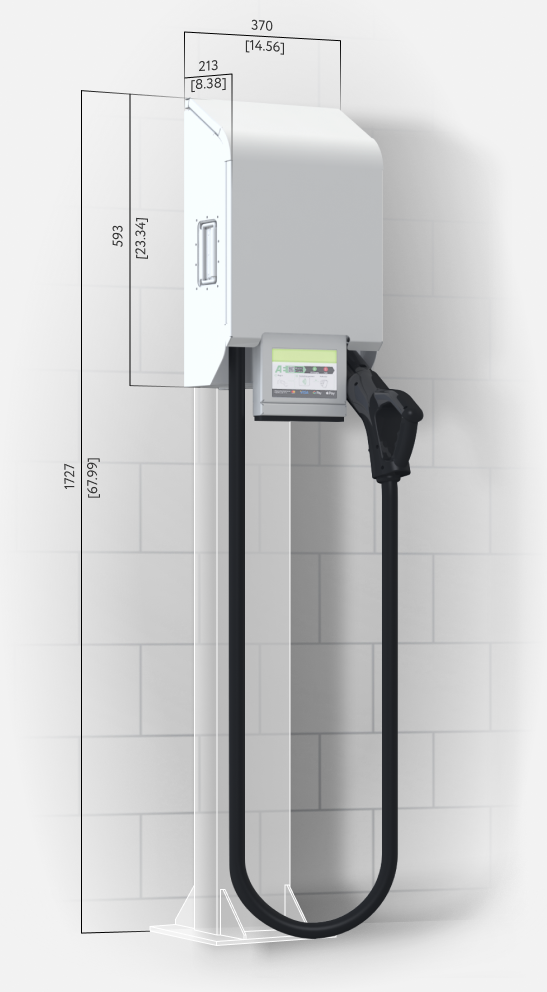

img station

Supported charging station ports:

CCS Type 2: 120A up to 1000V, 40kW
CHAdeMO: 120A up to 1000V, 40kW

Mounted:

Wall, pedestal or stander in a floor

Charging station size (H×W×D):

Movable set:
24.80 x 14.56 х 8.38 inch / 630 х 370 х 213 mm
Floor mounting:
67.99 x 14.56 х 23.66 inch / 1727 х 370 х 601 mm

Length of cables:

From 21.33 ft / 6.5 m

Information display:

Two-line LED-backlit in English / Italian / German / France / Spanish / Ukrainian / Polish / Czech / Macedonian / russian

Enclosure:

Aluminium

AC Input from Type 2 AC charger or any socket
400V / 60A (Adjustable by software)

DC Output - 1000V / 120А

Methods of connecting the charging station to the billing system are available:

2G, 3G, 4G, LAN, Wi-Fi

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+ cards Mobile application P&C by VIN code / credit card
terminal choosed by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express,
Apple Pay, Google Pay, and any other choosed by owner

Protective equipment:

Enclosure protection class IP54
Mechanical protection class IK10

Operating temperature range:

From -35°C to +50°C / -31°F and 122°F

Warranty:

24 months

Charging station manufacturer:

Ukraine

CE, ISO, EAC and etc. certified

The number of cars that can be charged at the same time:

1 car

OCPP protocol support:

1,6 JSON

Access and activation:

RFID cards (Mifare standard), local list memory - 10000+ cards
Mobile application P&C by VIN code / credit card terminal choosed
by owner

Payment by credit card:

Recommend payment terminal Ingenico iUC180 / iUC180B terminal. (Only for special orders)

Support for the following payment methods:

Online terminal, Visa, MasterСard, American Express, Apple Pay, Google Pay,
and any other choosed by owner

Complete installation and operating instructions

Check out the detailed technical characteristics and rules of operation of the charging station.

Download instruction >

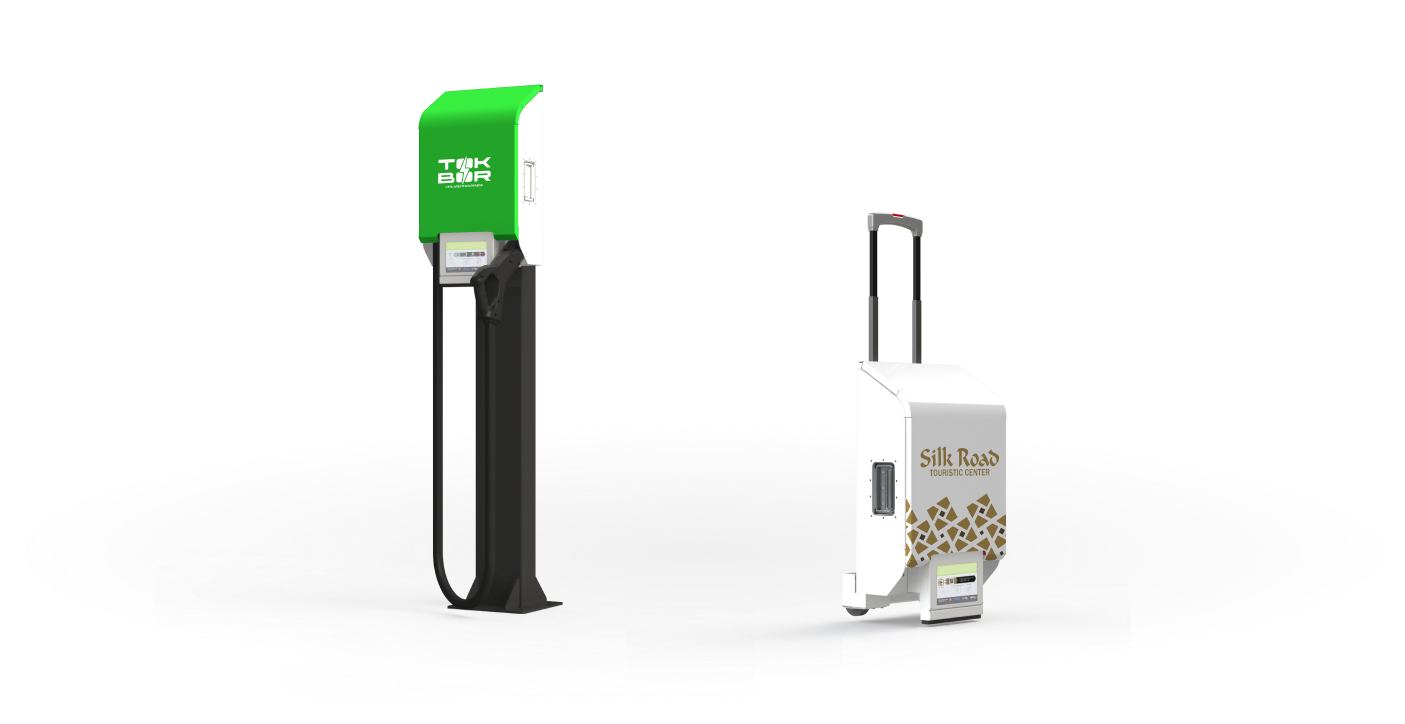

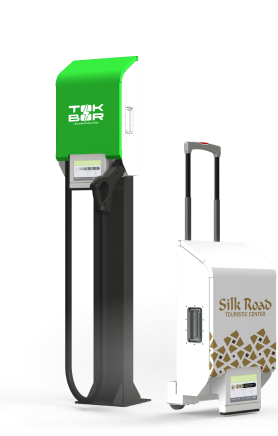

Branding your charging station

We can brand the charging station according to your brand book. Painting the stations in your corporate colors, applying slogans, logos and other identities of your company will create a unique style of the charging station.

branding
branding

Our partner Charger System Inc

For clients
modern design

Advanced approach to UX and UI

regular update

Regular updates, new features, etc.

For business
control

Manage your EV charging network

edit info

Edit station information and functions in your app

Visit web-site >

CS Cloud

Charger System Inc provides customers with a cloud-connected product that allows charging stations to operate on the same network.

app

Mobile Apps for clients

online support

Online support adn diagnostic

configuration

Online config and updates

manager

Transaction manager

bill

Billing system

Our certificates

The highest quality of AE Charge Point stations is confirmed by certificates of conformity of independent organizations around the world.

Our products are successfully sold to Europe, Israel (USA and Canada for fleet charging).
